Housing: Anodized aluminum light bar, powder-coated lamp holder & bracket, stainless steel screws, fully anti-corrosion, no cracking & peeling; rotation scale marked on fixture surface
Heat Dissipation: Folded fin integrated heatsink, excellent heat dissipation to extend fixture service life
Modular Structure: Easy assembly, quick maintenance, flexible power combination according to project demands
Wind Resistance: Supports Class 17 wind load (56.1~61.2 m/s), stable for high mast & outdoor stadium use
Waterproof Grade: IP65 full waterproof, suitable for all outdoor harsh environments
Lifespan: L70 >60,000 hours, 5 years official warranty

Item	Details
Input Voltage	AC90-305V / AC108-528V wide voltage
LED Chip	Lumileds 5050 high efficiency LED
Luminous Efficiency	Up to 160lm/W
CRI	70 / 80 / 90 optional
CCT	3000K / 4000K / 5000K / 5700K / 6500K
Power Factor	>0.95
Beam Angle	20°,40°,60°,90°,H140*V100 multi-angle optional
Operating Temperature	-40℃ ~ +55℃
IP Rating	IP65
Driver Brand	Meanwell / Sosen / Inventronics detachable driver box
Dimming Solution	0-10V Dimming, DALI, CLO, Zigbee wireless control
Rotation Angle	Single module ±40° adjustable; mounting bracket 120° rotatable

Model	Module Qty	Total Power	Lumen Output
SG-G2-120W	1pcs	120W	18,000LM
SG-G2-240W	2pcs	240W	36,000LM
SG-G2-360W	3pcs	360W	54,000LM
SG-G2-480W	4pcs	480W	72,000LM
SG-G2-720W	6pcs	720W	108,000LM
SG-G2-960W	8pcs	960W	144,000LM
SG-G2-1200W	10pcs	1200W	180,000LM
SG-G2-1440W	12pcs	1440W	216,000LM

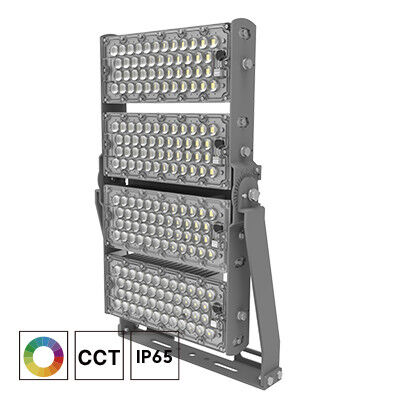

SOGA G2 Series Rotatable Modular LED Stadium Flood Light

3. Product Advantages

High Lumen Efficiency

Equipped with reliable Lumileds 5050 LED chips, max 160lm/W high luminous efficiency, greatly reduce power consumption, energy-saving & eco-friendly.
Rotatable Modular Design

Each single light module can rotate ±40°, mounting bracket supports 120° adjustment. Realize precise targeted lighting, one fixture covers wide lighting area, fast & simple installation.
Excellent Heat Dissipation

Folded fin-style aluminum heatsink, smooth air circulation to take away heat rapidly, effectively reduce LED light decay, guarantee long service life over 60,000 hours.

Complete Smart Wireless Control System (Zigbee Optional

Our full Zigbee smart lighting solution supports plug&play connection, cloud remote control via mobile phone, laptop & router:

Smarter & faster dimming & switch control
Easy daily operation without complicated wiring
Simplified wiring to save installation labor cost
Stable long-term running performance
Low-cost daily maintenance

Wide Application Compatibility
Can work as flood light, stadium light, high mast light for multiple scenarios.

4. Optional Accessories

Anti-light spill cover
Suction-mounted laser pen
20KV SPD surge protection
Zigbee gateway
Zigbee controller
Zigbee wall switch
Stainless steel mounting bracket

5. Application Scenarios

Sports stadiums & outdoor sports courts
Highway, parking lot, construction site
Billboards & advertising boards
Tunnels, seaport & wharf high mast lighting

Model	Qty Per Carton	Carton Size	Net Weight	Gross Weight
SG-G2-120W	1pc	37×27×19cm	3KG	3.5KG
SG-G2-240W	1pc	42×38×19cm	5KG	5.5KG
SG-G2-360W	1pc	42×52×19cm	7KG	8KG
SG-G2-480W	1pc	42×65×19cm	9KG	10KG
SG-G2-720W	1pc	42×78×19cm	11KG	12KG
SG-G2-960W	1pc	71×53×19cm	12.5KG	14KG
